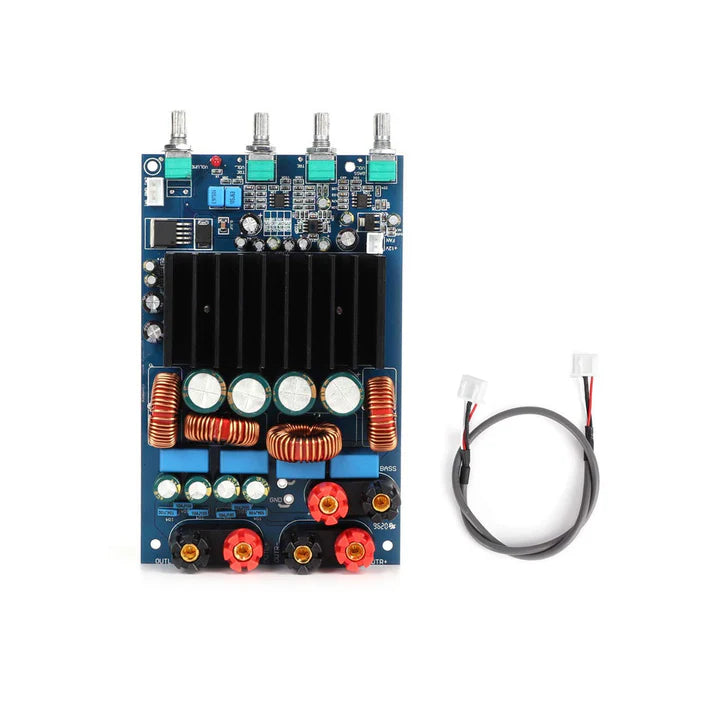

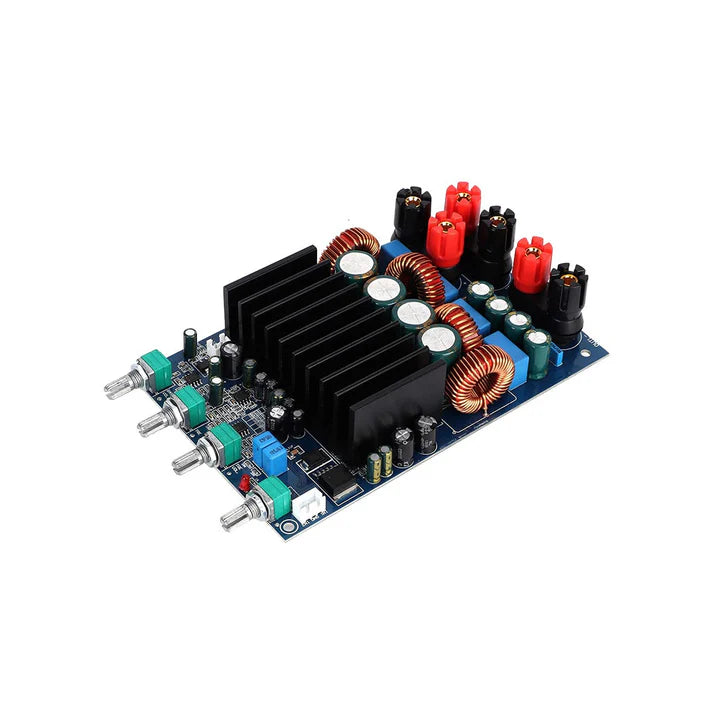

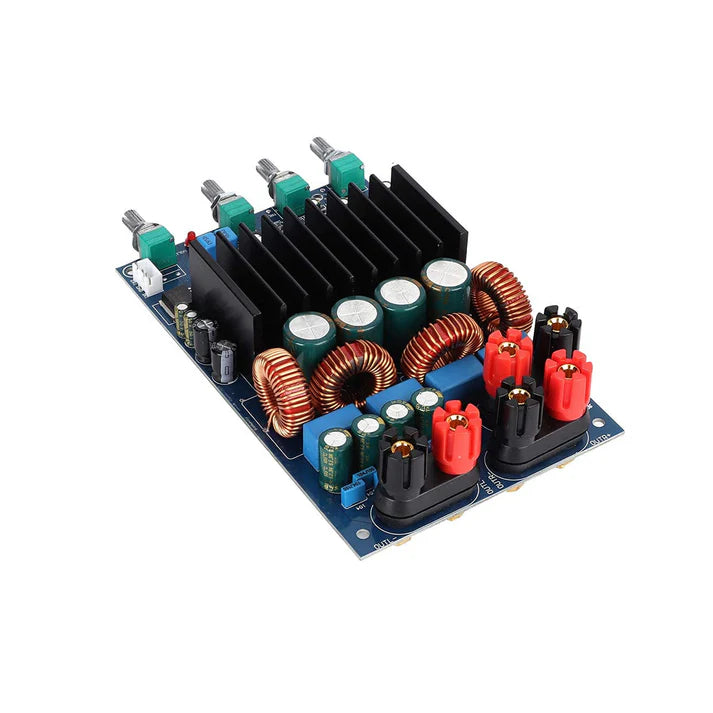

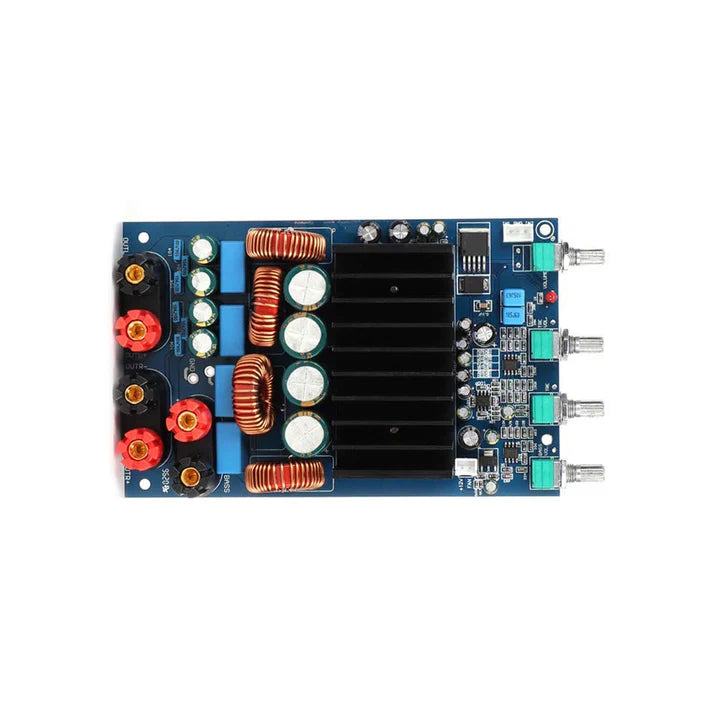

TAS5630 2.1 CLASS D300W+150W+150W TONE ADJUST AMPLIFIER COMPLETED BOARD

Description:

This is TAS5630 2.1 Digital Power Amplifier Board 300W+150W+150W HD Sound Audio Parts for Electronic Enthusiast. Using original TAS5630, OPA1632DR, TL072. The main filter electrolytic capacitor uses a capacity of 470UF/100V*4 to ensure strong and continuous power support. The resistor uses a five-ring metal resistor, and the main circuit uses a five-ring metal film resistor with an accuracy of ±1% to ensure a good signal-to-noise ratio.

Specifications:

• Working method: Class D
• Quiescent current: 65mA
• Work efficiency: 88%
• Output power: 300W+2*150W/4 ohms 10% THD
• Frequency response: 20Hz to 20KHz
• Dynamic range: >100 dB
• Signal to noise ratio: 100dB (A-weighted)
• Working voltage: DC48V

Features:

• Using original TAS5630, OPA1632DR, TL072.
• Fully shielded high-current inductors ensure a crisp and powerful sound.

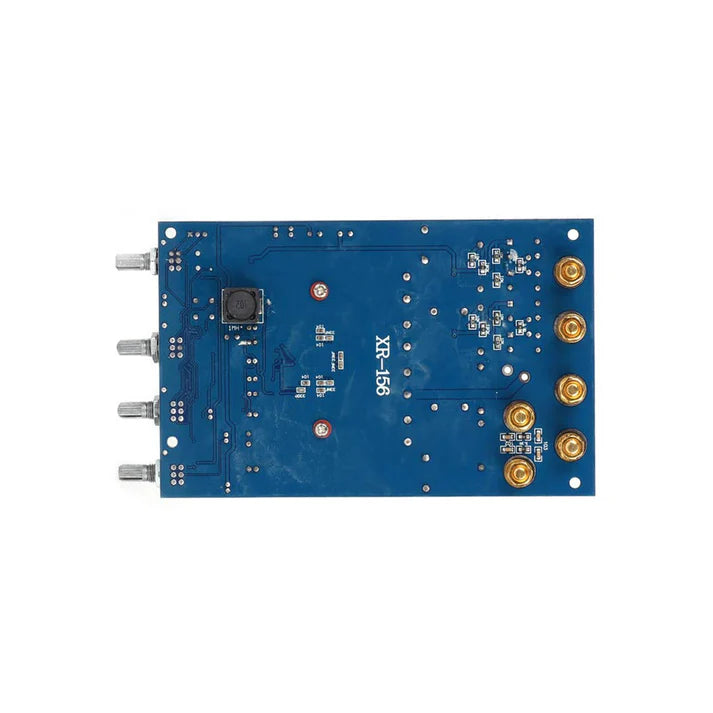

• PCB uses a 1.6mm thick double-sided sheet.
